AP-A3-8D 2017-05-27T17:32:43+00:00

Project Description


Model: AP-A3-8D

Printer head: Original Epson DX5

Max resolution: 5760*1440dpi

Printing speed: 64 seconds for full A4 size


This is a new machine that the printer together with computer. You can edit your pictures on your computer and print directly.

1.Personalized printing, any design as you want to print, no quantity require;
2.High quality pigment ink for direct to garment printing;
3.vivid color without clogging;
4.Strong washed by machine or hand, wearing resistance and good color fastness;
5.100% safe for touch skin, no smell,good protection for environment;
6.operation easy and simply, save your time and cost.

Ant-Print Printer Model AP-A3-8D (for white and dark garment printing)
Printer head and motherboard Original Epson Dx5-1900
Printing Method Direct-to-Garment Inkjet Printing
Printer head Technology DX5, 8colors printer head , Piezo-Electic Drop-On-Demand Inkjet
Object Pretreatment Coating first or directly print; For garment, color fixing agent and white ink first or directly print
Ink Delivery System Continuously ink supply system with damper Cartridge
Garment Handling Shuttling Print Table, Hooped and Non-Hooped Operation
Max .Image Size(Table Size) WxL 33*60cm,  A3+ size
Garment Thickness Adjustment Up to .8″(2.03cm)

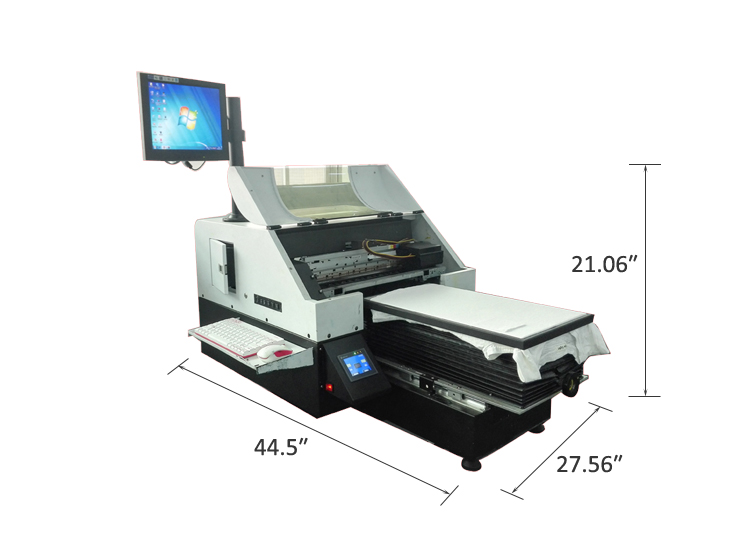

Printer Size W×L×H/Gross Weight 27.56″×44.5″×21.06″(70cm×113cm×53.5cm)/85kg
Printing height: the highest  20cm
Printing speed 64s / A4 size picture
Protection of print height Equipped with fixed height limit to protect printer heads
Ink Type Water-based pigment ink.for direct printing
Ink Colors Dark garment Ink: CMYK+ White inks; Light garment Ink: CMYK inks
Number of Ink Channels/Nozzles 8 Channels,180 Nozzles per Channel, Total of 1,400 Nozzles
Max printing resolution 5760*1440dpi
Printer Software AcroRip / photoshop / Coreldraw
Printable Substrates 100% Cotton, Cotton Blends, Poly-cotton, Jean
Operating System Requirements Windows XP /7, win2000
Environment(Operating) 61℉(16℃)to 95℉(35℃);Humidity 45-80% RH, Non-condensing

Vista*4MacOS X10.2.8 or later (PPC & Intel CPU)

Interface USB 2.0
Power Consumption 65VA(average action),15VA(idling)
Power Supply AC115V 50/60 Hz(US);AC220V 50Hz(Europe and other)
Packing package in wooden case, size: 132*68*82cm, volume weight:150kg
